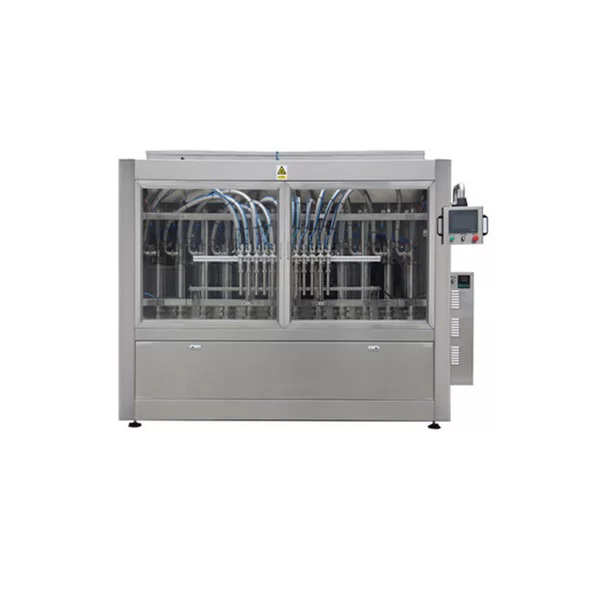

Automatic Hand Washing Filling and Capping Machine Description:
- Contact part material : SS 316 , other machine parts : SS 304
- Suitable material: Oil, jams, daily chemicals, and something that very viscous.
- This automatic hand washing filling and capping machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
- Accurate measurement: adopt servo control system, ensure the piston can always reaches constant position.
- When close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution.
- Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.
Technical Parameter:
No. | Item | Technical Data |
1 | Capacity | 2500-3000BPH |
2 | Filling Range | 50ml-2000ml |
3 | Accuracy | ±0.5% |
4 | Power | 1.1KW |
5 | Voltage | 3 Phase 380V 50HZ |
6 | Weight | 1000KG |
7 | Dimension | 2000*1500*2300MM |
Main Configuration:
| Descriptions | Brand | Item | Remark |
| Servo motor | Panasonic | 1.5KW | Japan |
| Reducer | Fenghua | ATF1205-15 | Taiwan |
| Conveyor motor | ZhenYu | YZ2-8024 | China |
| Servo drivers | Panasonic | LXM23DU15M3X | Japan |
| PLC | Schneider | TM218DALCODR4PHN | France |
| Touch Screen | Schneider | HMZGXU3500 | France |
| Frequency Converter | Schneider | ATV12HO75M2 | France |
| Photo electricity of inspect bottle | OPTEX | BRF-N | Japan |
| Pneumatic Element | Airtac | Taiwan | |
| Rotary Valve | F07/F05 | No Need for Oil | |
| Pneumatic actuator | F07/F05 | No Need for Oil | |
| Low-Voltage Apparatus | Schneider | France | |
| Proximity switch | ROKO | SC1204-N | Taiwan |
| Bearing | China | ||
| Lead Screw | TBI | Taiwan | |
| Butterfly valve | CHZNA | China |
