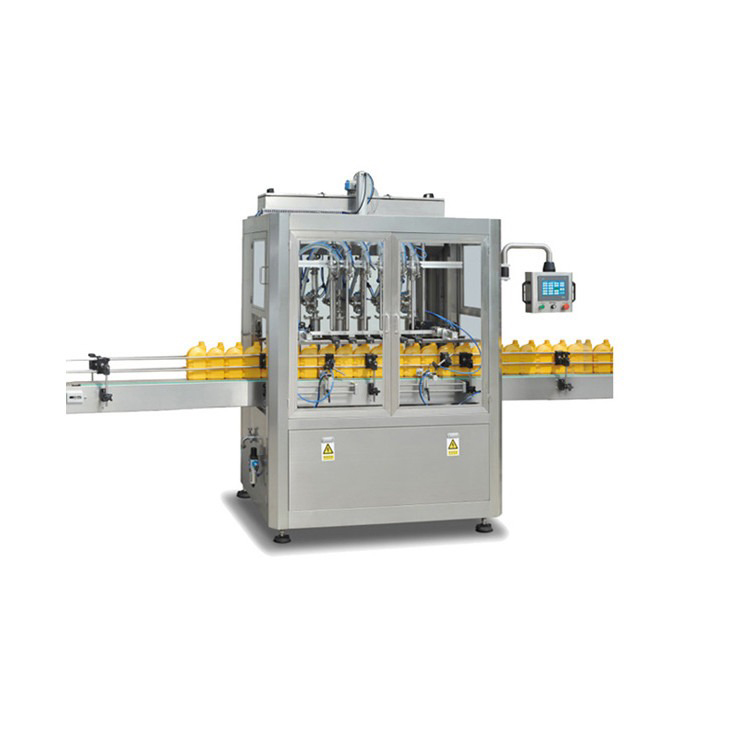

The Main Application of Honey Filling Production Line:
This machine designed to filling liquid,honey,thick creams,food,juice,pharmaceutical,oil and other specialty industries.
The series of honey filling machine has compact, reasonable configuration and nice, simple appearance. They adopt Germany Festos pneumatic components, Japanese mechanical parts and Mitsubishis electric components, the excellent quality of components ensure that our machines’ perfect quality and stably characters. This honey filling equipment is easy to maintain and clean, no special tools are required, and have the following features: real time adjust ability, accurate filling volume and total bottles counter.
Variable speed drive conveyor, adjustable heavy duty stainless steel frame, and easy operate control panel.
Honey Filling Production Line Video:
The main configuration of honey filling production line:
1 | Speed | 1600-2500 bottles/h |
2 | Filling range | 50~1000ml |
3 | Measurement precision | ±1% |
4 | Working power | 220VAC |
5 | Air pressure | 6~7㎏/㎝² |
6 | Air consumption | 1m³/min |
7 | Power rate | 0.8kw |
8 | Other devices power rate | 7.5kw(air compressor) |
9 | Net weight | 2520Kg |
10 | Counter size | 2440X1300X2200mm |
Configuration:
Descriptions | Brand | Item | Remark |
Servo motor | Panasonic | 1.5KW | Japan |
Reducer | Fenghua | ATF1205-15 | Taiwan |
Conveyor motor | ZhenYu | YZ2-8024 | China |
Servo drivers | Panasonic | LXM23DU15M3X | Japan |
PLC | Schneider | TM218DALCODR4PHN | France |
Touch Screen | Schneider | HMZGXU3500 | France |
Frequency Converter | Schneider | ATV12HO75M2 | France |
Photo electricity of inspect bottle | OPTEX | BRF-N | Japan |
Pneumatic Element | Airtac | Taiwan | |
Rotary Valve | F07/F05 | No Need for Oil | |
Pneumatic actuator | F07/F05 | No Need for Oil | |
Low-Voltage Apparatus | Schneider | France | |
Proximity switch | ROKO | SC1204-N | Taiwan |
Bearing | China | ||
Lead Screw | TBI | Taiwan | |
Butterfly valve | CHZNA | China |
