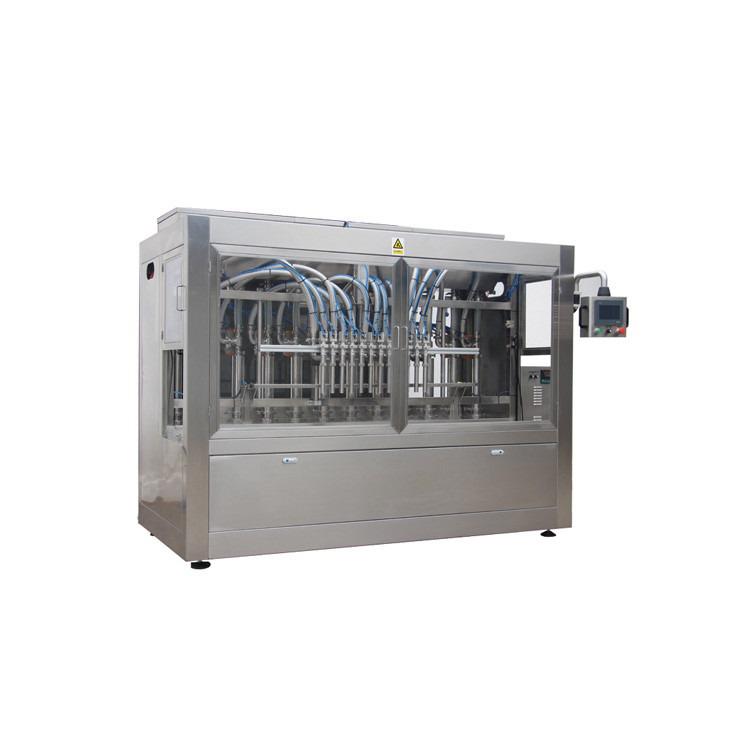

Vegetable Oil Bottling Machine/Equipment/Production Line
1.Product: Oil
2.Bottle Volume: 0.5L-6L
This type of oil filling machine can be used for fixed amount small package filling,straight line type filling,mechamcal,electric,apparatus control of all sorts of viscous and nonviscous,erosive liquid,such as plant oil chemlcal,liquid,daily chemical industry.It is rather simple and rapid to change items,the design is quite distinct,the property is Very advantageous,its appearance corresponds to international concept for mechanlcal equlpment.
It has applied SIEMENS PLC computerlzed control,from germany.
It has intellectual,protection function.
Vacuum drop prevention device guarantees there Should be absolutely no drop or leakage during production.
There is a switch for step progressive type suppiy and continuous supply.It can be Set Optionally.
It has applied imported pneumatic control parts.
It has applied German technique on photoelectric sensors.
Nalional patenled double speed technique has greatly increased production effciency.
This machine is suitable for many items,the adjustment is rapid and high efnclent.
Electrlcal volume adjustment System.
Photoelectric inspection system has applid TURCK products of germany.
Can be used together with the cover screwing &pressing machine,Leakage inspection macine,Aluminum foil operang sealing machine.
Feeding conveyor:
1 easily to change the bottle shape
2. Rise the speed
3. Connect the bottle feeding part
4. Could add the bottle stopping device
5. Air conveyor for the plastic bottle, screw conveyor for the glass bottle
Filling parts
1. No bottle no filling
2. Same filling level of all the bottles, adjustable filling level
3.Filling precision≤±2mm
4. Vacuum filling method
5. No dropping
Capping part
1.PCO ,plastic cap, metal cap, aluminum cap
2.no bottle no capping
3.two sensor to check, PLC control
4.no full no capping
5. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
6. All 304stainless steel construction
7. Automatic stop when lack of bottle
8. Automatic caps arranging and feeding, lack of caps automatic feeding
Lamp checker
Clearly to see the filled bottle
Vacuum tank and pump
Because the liquid contains the foam , so not only the valve has the degas feature, we also need the fit the vacuum pump and tank, to suck all the foam from the liquid , and send to the vacuum tank through the vacuum pump
Electrical apparatus
PLC/ transducer/ touch screen: siemens
Contactor/ air switch/ stabilized voltage supply: Schneider
Photo electricity/ proximity switch: Atonics
Cylinder: Air tack
