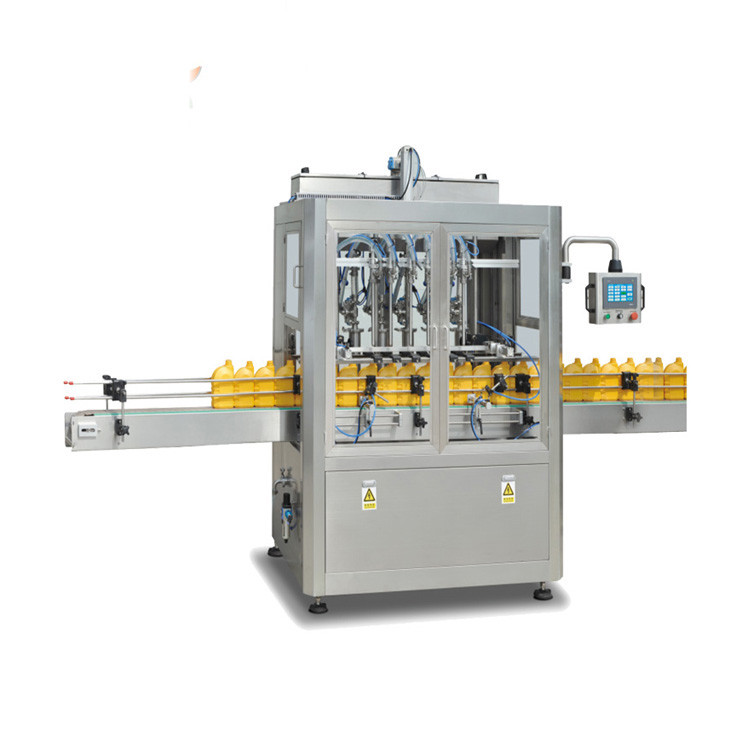

Automatic Engine Oil Bottle Filler Machine Description:
This automatic engine oil bottle filler machine can be used for fixed amount small package filling,straight line type filling, metical, electric, apparatus control of all sorts of viscous and no viscous,erosive liquid, such as plant oil chemical,liquid,daily chemical industry. Automatic engine oil bottle filler machine is rather simple and rapid to change items,the design is quite distinct,the property is very advantageous,its appearance corresponds to international concept for mechanical equipment.
Automatic Engine Oil Bottle Filler Equipment Main performance parameters:
- 1. Capacity: 50ml -100ml ≤ 6000b/h; 500ml ≤5000b/h; 1000ml≤4500b/h
- 2. Bottle type: round bottle Φ40-100 mm, height 80-280 mm
- flat bottle (40-100mm)*(40-100mm)*(80-280mm)(L x W x H)
- 3. Diameter of bottle opening: ≥φ25mm
- 4. Filling range: 50-1000ml
- 5. Precision: (200ml) ±1%;(200ml-1000ml)±0.5%
- 6. Air pressure: 0.6~0.8 MPA
- 7. Power source: ~380V,50HZ
- 8. Production line height: 900mm±50mm
- 9. Filling materials: liquid soap, cleaners and low viscous liquid packing
- 10. Bottle feeding direction: From left to right
Main Features of Automatic Engine Oil Bottle Filler Equipment:
- 1. Adopts piston pump to fill, suitable for all kinds of liquid, high precision; The structure of pump adopts shortcut dismantling organ, convenient to wash, sterilize.
- 2. The piston ring of volumetric injection pump use different material of silicone, polyclonal or other kinds according to liquid characteristic, use ceramic pump in special industry.
- 3. Engine oil filling machine with PLC control system, frequency conversion adjusting speed, high degree automation.
- 4. No bottle, no filling, auto count the quantity. And have the anti-drop device.
- 5. Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate.
- 6. Filling head is equipped with anti-dropping equipment, diving to the bottom to fill, rise slowly, to avoid bubble.
- 7. The whole engine oil filling equipment is suitable bottles in different size, easy adjusting, and can be finished in short time.
